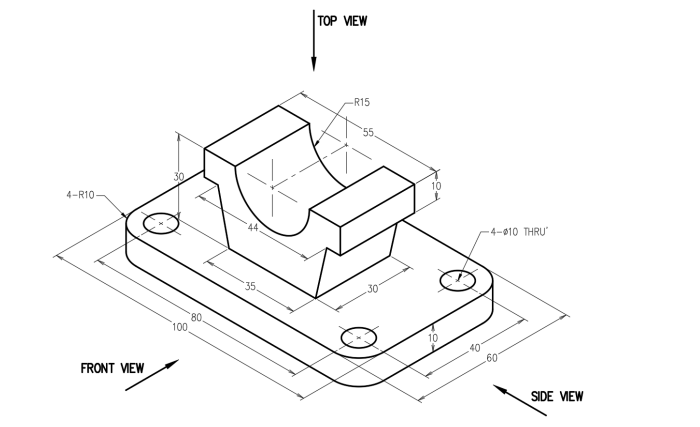

Rajah 1 menunjukkan lukisan isometri bagi satu bongkah. Lukiskan secara manual saiz penuh bagi bongkah: Research and Project Management Report, OUM, Malaysia

University Open University Malaysia (OUM)
Subject Research and Project Management
  • Rajah 1 menunjukkan lukisan isometri bagi satu bongkah. Lukiskan secara manual saiz penuh bagi bongkah tersebut dalam unjuran sudut pertama atau ketiga berdasarkan pandangan-pandangan berikut:

(i) Pandangan hadapan
(ii) Pandangan sisi, dan
(iii) Pandangan atas

Butiran tersembunyi mesti ditunjukkan dalam semua pandangan

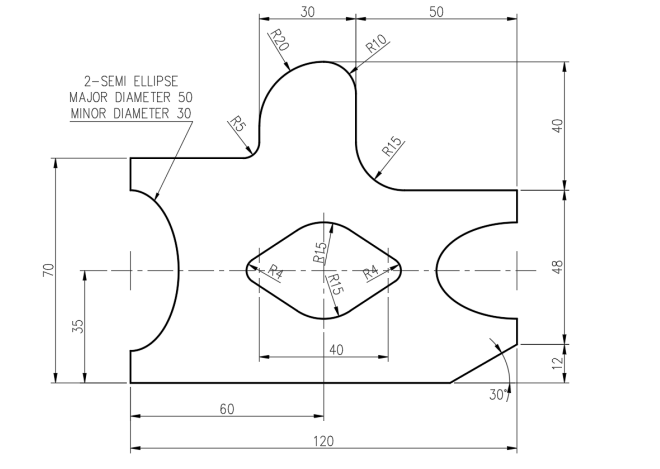

  • Rajah 2 dan Rajah 3 menunjukkan bentuk sebenar sebuah pencontoh. Lukiskan semula pencontoh tersebut dengan menggunakan perisian AutoCAD. Cetakkan lukisan anda kedalam format pdf dengan ketebalan garisan seperti berikut

i) Garisan objek = 0.6 mm
ii) Lain-lain (jika ada) = lalai
iii) Sekurang-kurangnya 4 dimensi ditunjukkan
