Figure 1 shows a circuit consisting of THREE (3) voltage sources and FIVE (5) resistors: Electrical Technology Assignment, UKM, Malaysia
| University | Universiti Kebangsaan Malaysia (UKM) |
| Subject | Electrical Technology |
Question 1

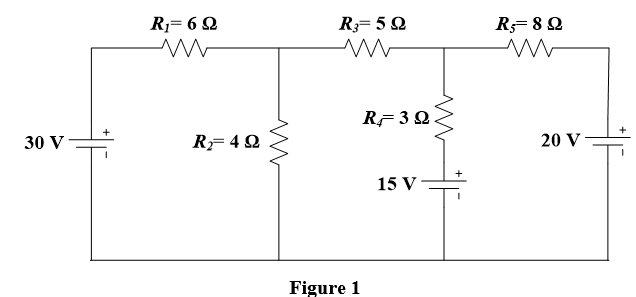

Figure 1 shows a circuit consisting of THREE (3) voltage sources and FIVE (5) resistors.
- Calculate the amount of current that flows through R4 (3 Ω) in Ampere (A) using Mesh Analysis.
- Proof your answer in question 1 (a) using Nodal Analysis.
Question 2

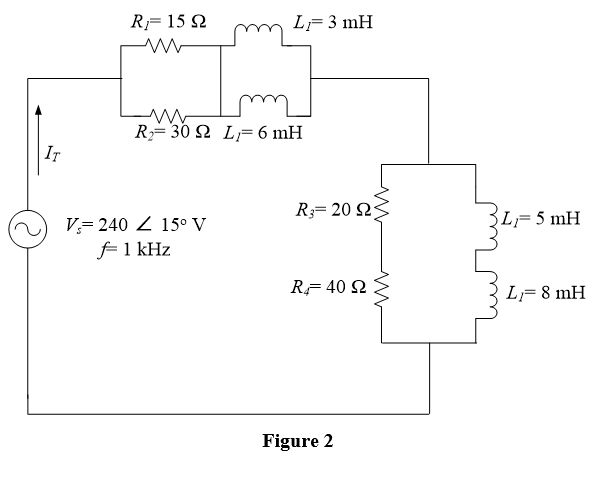

Figure 2 shows a circuit that contains ONE (1) voltage source, FOUR (4) resistors and FOUR (4) inductors.
- Determine the total current IT for this circuit in polar form.
- Determine the phase angle of IT lags the Vs.
QUESTION 3
Figure 3 shows a Y-connected source driving a Δ-connected load. The load is a balanced load ( Za=Zb=Zc= 15 + j20 Ω).
- Determine phase voltage Vθb and Vθc in polar form.
- Determine each line voltage (VL1, VL2, and VL3) in polar form.
- Determine each load voltage (VZa, VZb, and VZc) in polar form.
- Determine load current (IZa, IZb, and IZc) in polar form.
- Determine the total magnitude of true load power (PL(tot)).
