UGEA1243,UGEB1013 Circuit Theory Assignment 1: DC Source Design, Parameter Selection & Simulation Verification

Question

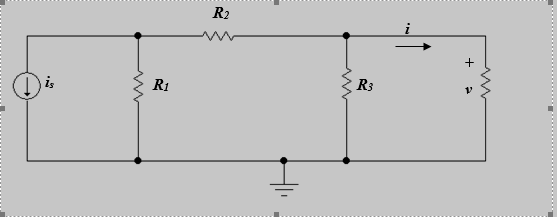

1. The circuit shown in Figure A1.1 has four unspecified circuit parameters: i_s, R₁, R₂, and R₃. To design this circuit, we must specify the values of these four parameters.

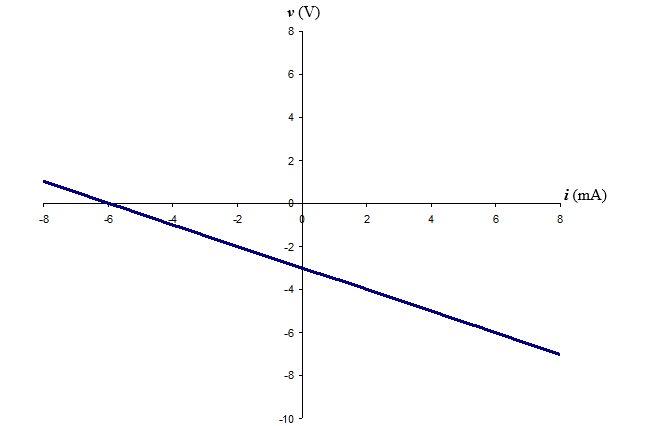

2. The graph shown in Figure A1.2 describes the relationship between the current i and the voltage v of a DC source.
3. Specify values i_s, R₁, R₂, and R₃ that cause the current i and the voltage v in Figure A1.1 to satisfy the relationship described by the graph in Figure A1.2.
4. Verify your answer using a simulation software (for eg. Multisim).

Figure A1.1
