MEE3383: From the power flow standpoint, propose a solution to make sure the system is operating within acceptable voltage limits: Advanced Power System Analysis Design Assignment, UCD, Malaysia
University | University College Dublin (UCD) |
Subject | MEE3383: Advanced Power System Analysis Design |
CO-PO Mapping:
- Critically analyze the steady state performance of a power system.
- Model a comprehensive power system according to standards that are suitable for power system study using appropriate analytical software.

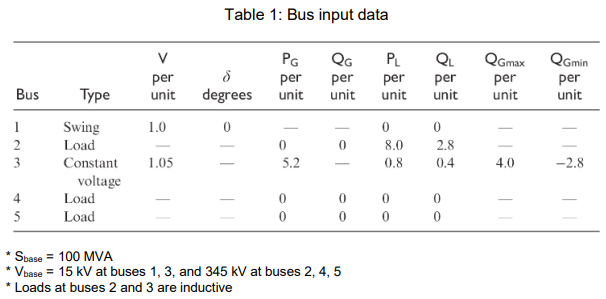

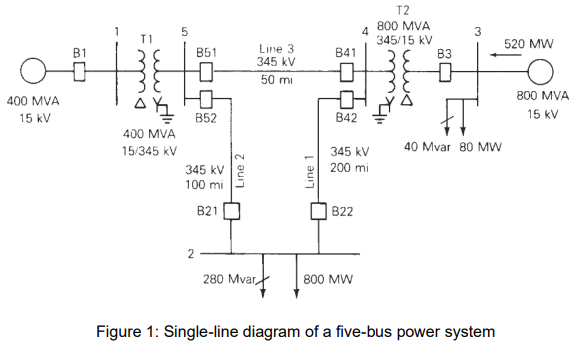

As a planning engineer, you are required to provide recommendations for the five-bus power system as shown in Figure 1, to ensure that the system is adequate for any base case or first contingency loading situation.
- From the power flow standpoint, propose a solution to make sure the system is operating within acceptable voltage limits. Refer to the Malaysian Grid Code for the operating voltage limit.
- Analyze the fault currents and voltages for a bolted single line-to-ground fault at Bus 1 to Bus 5. The pre-fault voltage is 1.05 p.u. A neutral reactance equal to 0.0025 p.u is connected to the Generator 2 neutral.

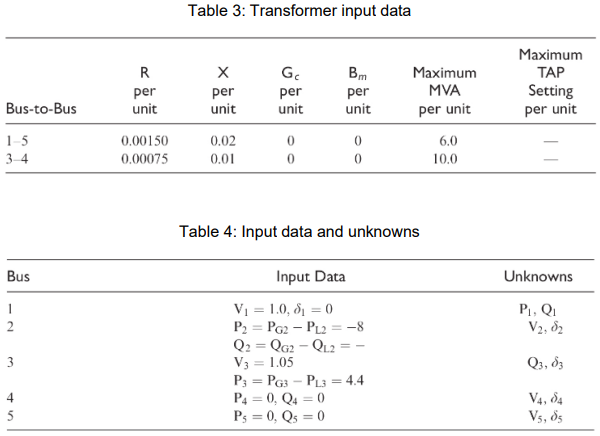

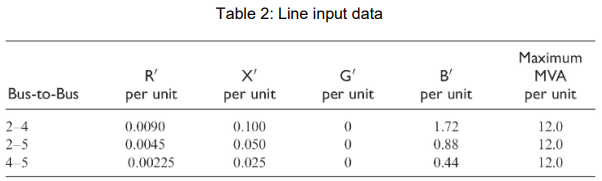

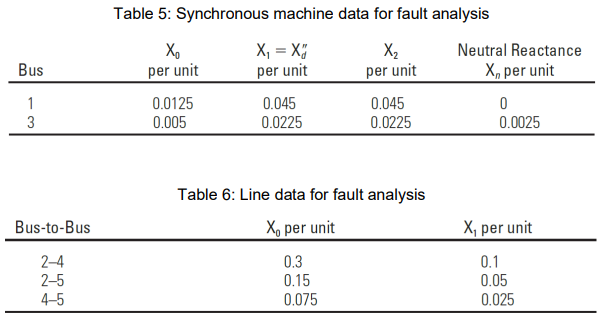

Machine, line, and transformer data are given in Tables 5, 6, and 7. Note that the neutrals of both transformers and Generator 1 are solidly grounded, as indicated by a neutral reactance of zero for this equipment. - Evaluate the circuit breaker ratings for the 345 kV transmission lines and 15/345 kV transformers. The circuit breaker ratings should be adequate for interrupting the fault current associated with any type of fault.
- Determine system modifications to replace Bus 3’s machine with a new wind
farm. The wind farm is expected to have a capacity factor of at least 70% of the system loading. Evaluate system performance while keeping a load of each line and transformer at 100% of its MVA limit.
